Brey Krause R-9154 Extra Low Passenger Seat Mount - Chevrolet Corvette (C7)

SKU: BR9154

$249.98

This product is on backorder and will ship when available.

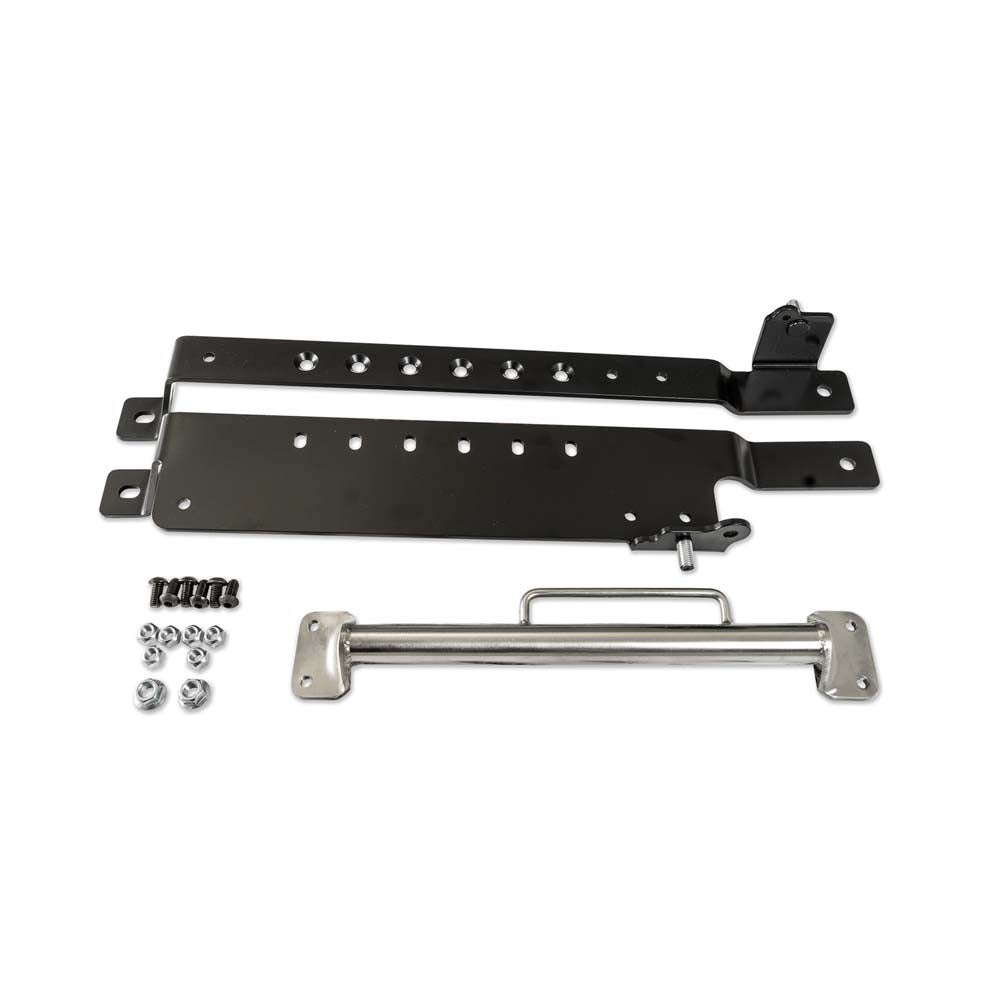

The Brey Krause R-9154 Passenger-side seat mount offers a solution to the low roof-line of the C7 Chevrolet Corvette. The racing seat adapter places the seat rails at a slant, allowing the seat to be lower in a rearward position when combined with a Recaro Slider (sold separately). This slant allows the seat to sit higher when in a forward position (perfect for shorter drivers), while offering increased head clearance when adjusted rearward for taller drivers. The R-9154 bolts directly to the floor of the C7 Corvette, and combines with a Recaro slider to allow the installation of many seat options when used with Brey Krause side-mounts. Also compatible with the C6 Corvette if you are searching for additional head-room.

The mounting kit comes complete with an adjustable integrated Sub-Bar for correct mounting of your 5 or 6 point harness system. The design also allows for the reuse of stock 3-point belts, with inboard/outboard lap belt mounting locations built in. Note: Brey Krause Seat brackets must be purchased separately - see Brey Krause R-906X series side mount brackets.
Part Number:BR9154
Manufacturer:R-9154
  • Material: Aircraft-Grade Aluminum; Type 304 Stainless Steel (sub-bar)
  • Finish: Black Gloss Powder Coat; Satin finish
  • Weight: 7.8 lbs.
  • Models: Fits C6 and C7 coupes ('05 - present), including Z06. Compatible with C5 Corvettes if factory 3-point belt is not used.
  • Installation: Attaches to driver side. Seat specific side-mount brackets not included (See list below). All other necessary hardware included.

These Seat Track Adapters are specifically designed to address the height issue seen in Corvette C7's. These adapters install the seats in the lowest possible position with sliders in order to allow a wider range of seats to fit in the C7's. This mount will still not allow for taller seats (example, Recaro SPGxl) to be used since the cockpit of C7's is not large enough. The incline in the Adapter allows for the seat to be positioned in the lowest spot possible when the seat is in its most rearward position. As the seat slides forward the height of the seat will increase. In order to place the seat in the lowest position on the sliders a cut in the carpet must be made.

Note: Although this kit allows for the installation of many brands and models of seats, due to the extremely low roof-line of the C7 Corvette, and the tight confines of the car, many larger seats cannot possibly fit.

Compatible Brey Krause Side Mounts:

With Aftermarket Sliders:

  • R-9060 - Sparco Evo, Momo Super Cup
  • R-9061 - Sparco Evo 2, Evo 2 Plus, Corsa, OMP HTE-XL
  • R-9062 - Recaro Pole Position
  • R-9066 - Recaro SPG XL
  • R-9067 - Recaro SPA, SPG, Pro Racer HANS
  • R-9065 - Cobra Nogaro

Direct Mount (No Sliders):

  • R-9071 - Sparco Evo, Pro 2000
  • R-9072 - Sparco Evo, Pro 2000
  • R-9073 - Sparco Evo 2
  • R-9074 - Sparco Evo 2
  • R-9761 - Sparco Evo 2 Plus
  • R-9762 - Sparco Evo 2 Plus
  • R-9075 - Sparco Evo 2 US
  • R-9076 - Sparco Evo 2 US
  • R-9075 - Recaro Pole Position, SPG XL
  • R-9076 - Recaro Pole Position, SPG XL
  • R-9755 - Recaro SPA, SPG, Pro HANS
  • R-9756 - Recaro SPA, SPG, Pro HANS
  • R-9751 - OMP HTE
  • R-9752 - OMP HTE
  • R-9775 - Cobra Nogaro
