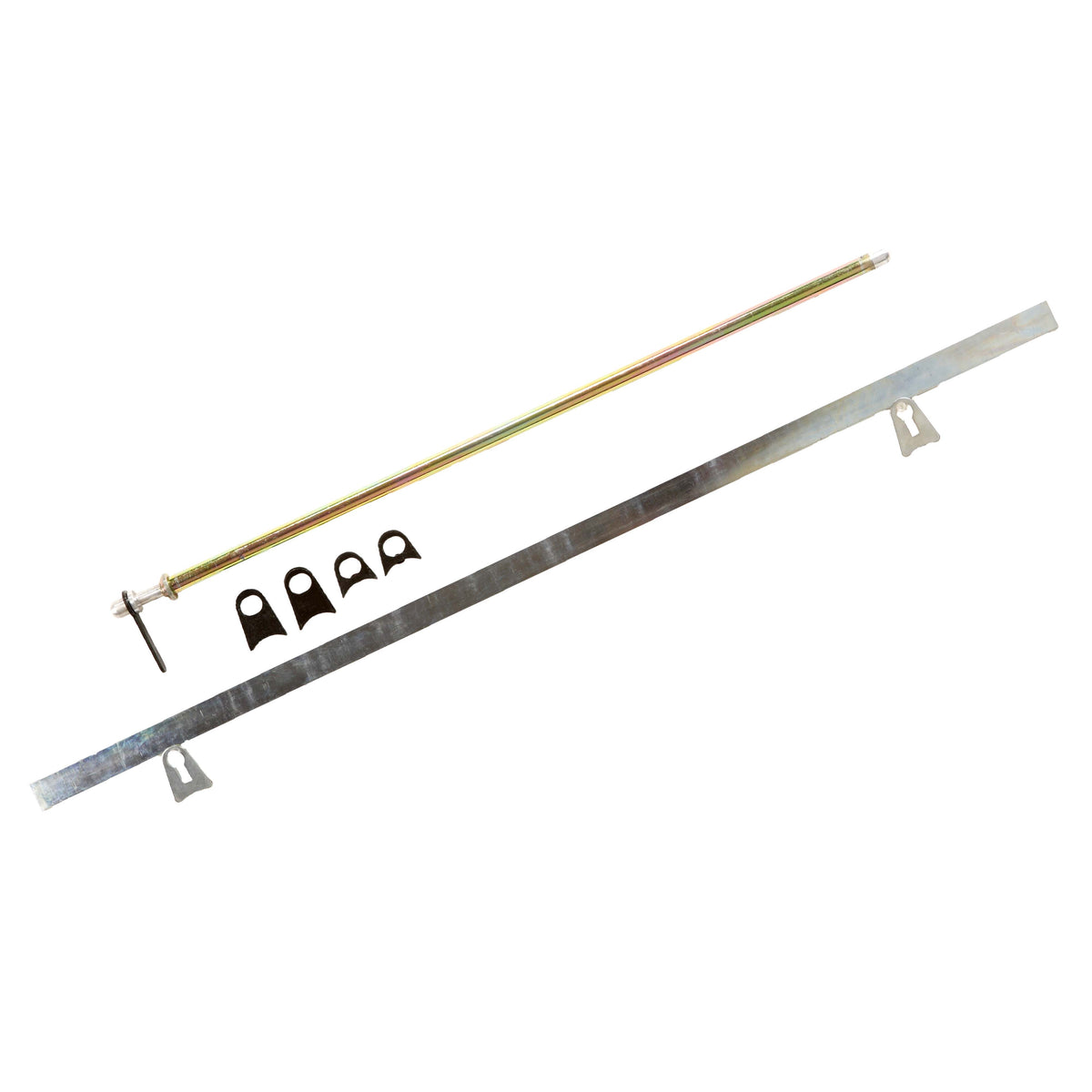

RaceQuip Window Net Mounting Kit - Spring Loaded w/ Flat Bar

• Complete top and bottom mounting hardware for one window net
• Spring-loaded 26.5" round top bar for quick net tensioning and release
• 35" flat bottom bar for a wider mounting surface
• Zinc-plated steel construction for durability and corrosion resistance
• Mounts via weld-on tabs for a permanent, structural chassis installation
• Optional tack-weld pull tab available for the top bar for easy net release
• Window net sold separately — compatible with standard-mount racing window nets

This configuration of RaceQuip's window net mounting hardware combines a spring-loaded top bar with a flat bottom bar — a useful pairing if your chassis layout favors a wider, flat mounting surface at the bottom while still wanting fast, spring-assisted net tensioning up top. The 26.5" round top bar uses a spring-loaded mechanism for a positive, consistent feel when tensioning or releasing the net, while the 35" flat bottom bar stays fixed once installed.

Both bars are constructed from steel with a zinc-plated finish, standard across RaceQuip's mounting kit lineup, for durability and corrosion resistance in a racing environment. As with their other kits, both bars secure to the chassis via tabs that are welded directly in place — a permanent, structural mount rather than a bolt-on solution. RaceQuip also includes the option to tack-weld a pull tab to the top bar, giving the driver or crew a dedicated, easy-to-grab handle for net release.

If you're comparing RaceQuip's mounting kit options, this one splits the difference between the round-bar spring-loaded kit (25.5" round bottom bar) and the flat-bar kits (GM buckle or latch & link top release) — spring-loaded release with a flat bottom bar profile. Confirm the 26.5"/35" bar dimensions match your window opening and chassis before welding tabs in place. The window net itself is sold separately.
