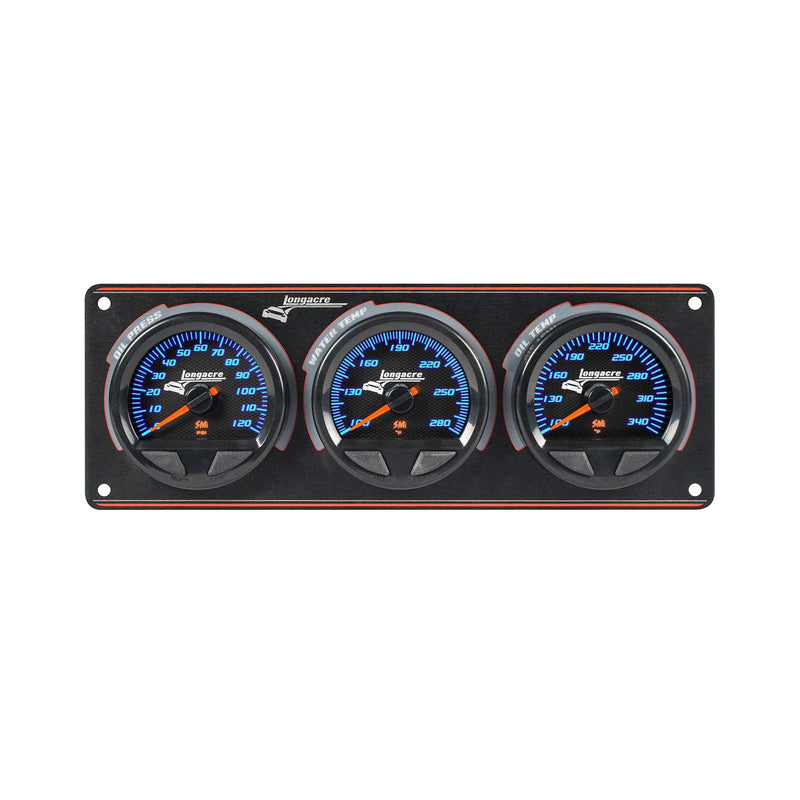

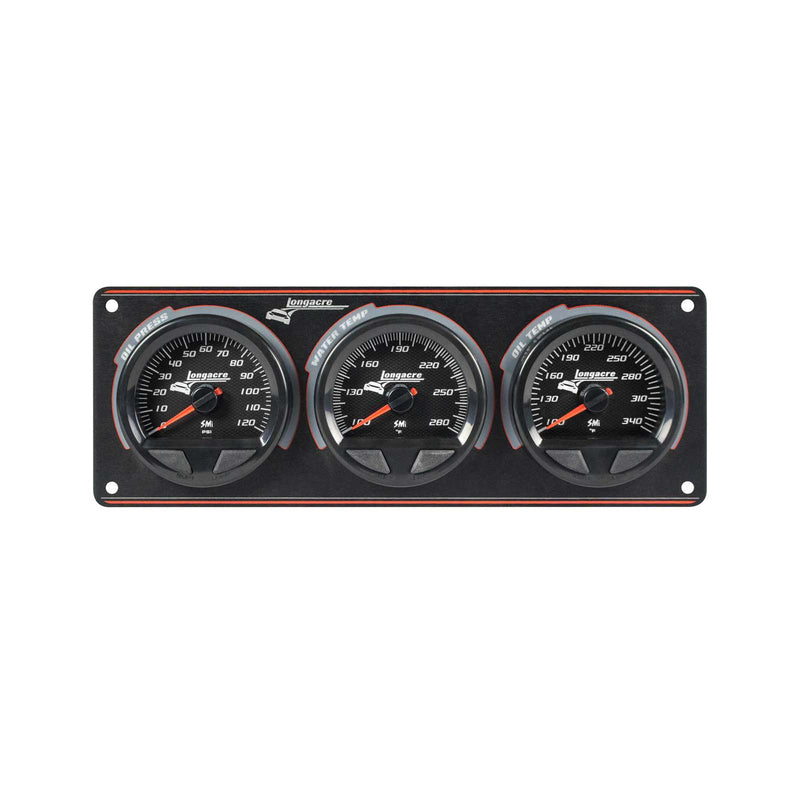

Longacre SMI Elite Waterproof 3-Gauge Panel - OP, WT, OT
SKU: LONG44561
$535
Longacre's 3-Gauge SMi Panel comes complete with the advanced AccuTech SMi Gauges. The 2-5/8" Stepper-Motor gauges use a small electronic motor that turns a fraction of a rotation to drive the pointer. Much more precise then traditional mechanical gauges, many pro-racing teams are switching to Stepper-Motor gauges to improve accuracy. The gauges include ultra bright LED warning lights that are easily set by the user. The Oil Pressure gauge includes 3 total set-points to make sure you notice motor problems before they become disastrous. The kit includes everything necessary for installation - heavily insulated wiring, soldered/heat-shrinked terminals, lights, and senders. Includes an attractive composite panel.
| Part Number: | LONG44561 |
| Manufacturer: | 52-44561 |
Gauges Included:
- Oil Pressure (0-100 psi)
- Water Temperature (100-280° F)
- Oil Temperature (100-340° F)
- New waterproof design eliminates the need to remove gauges before you wash your car.
- LED backlit numbers and illuminated pointers.
- Custom set your warnings and brightness.
- Backlight changes color based on the warning.
- Panels are completely wired and ready for quick installation.
- Many panel combinations available to suit your specific racing needs.
- All sensors are included.
- New 2-5/8” tachometer available with high rpm, average low rpm, and average high rpm recall.
- New water pressure gauge option available.
- Legal in most sanctioning bodies, including IMCA.
- New waterproof design eliminates the need to remove gauges before you wash your car.
- LED backlit numbers and illuminated pointers.
- Custom set your warnings and brightness.
- Backlight changes color based on the warning.
- Panels are completely wired and ready for quick installation.
- All sensors are included.
Gauges:
- Includes: Oil Pressure (0-100 psi), Water Temperature (100-280° F)Brand: AccuTech™ SMi™
- Style: Stepper Motor
- Type: Electronic
- Size: 2 5/8" diameter
- Face Color: Black
- Bezel Color: Black
- Pointer Color: Red LED Illuminated
- Oil Pressure Included: Yes
- Oil Pressure Range: 0-100 psi
- Oil Pressure Sensor Wiring: 5' lead length
- Oil Pressure Sensor Fitting: 1/8" NPT
- Oil Pressure Power Draw: 61mA @ 12v
- Water Temperature Included: Yes
- Water Temperature Range: 100º-280º F
- Water Temperature Sensor Wiring: 6' lead length
- Water Temperature Sensor Fitting: 1/2" NPT
- Water Temperature Power Draw: 62mA @ 12v
- Oil Temperature Included: No
- Fuel Pressure Included: No
- Voltage Gauge Included: No
- Tachometer Included: No
- Gauge Backlights: Blue
- Gauge Warning Lights: Yes
- Run on 12v System: Yes
- Run on 16v System: Yes
Panel:
- Material: Aluminum
- Finish: Black anodized
- Gauge Panel Dimensions: 7" x 3 5/8"
- Sensors Included: Yes
- Wiring Included: Yes
- Pressure Sensor Adapter Included: No
Replacement Parts:
- Pressure Sensor - 100 psi: PN 43520
- Pressure Sensor QD 'Pigtail' Wire: PN 43530
- Pressure Sensor Adapter: PN 43525
- Temperature Sensor - 280° F: PN 43500
