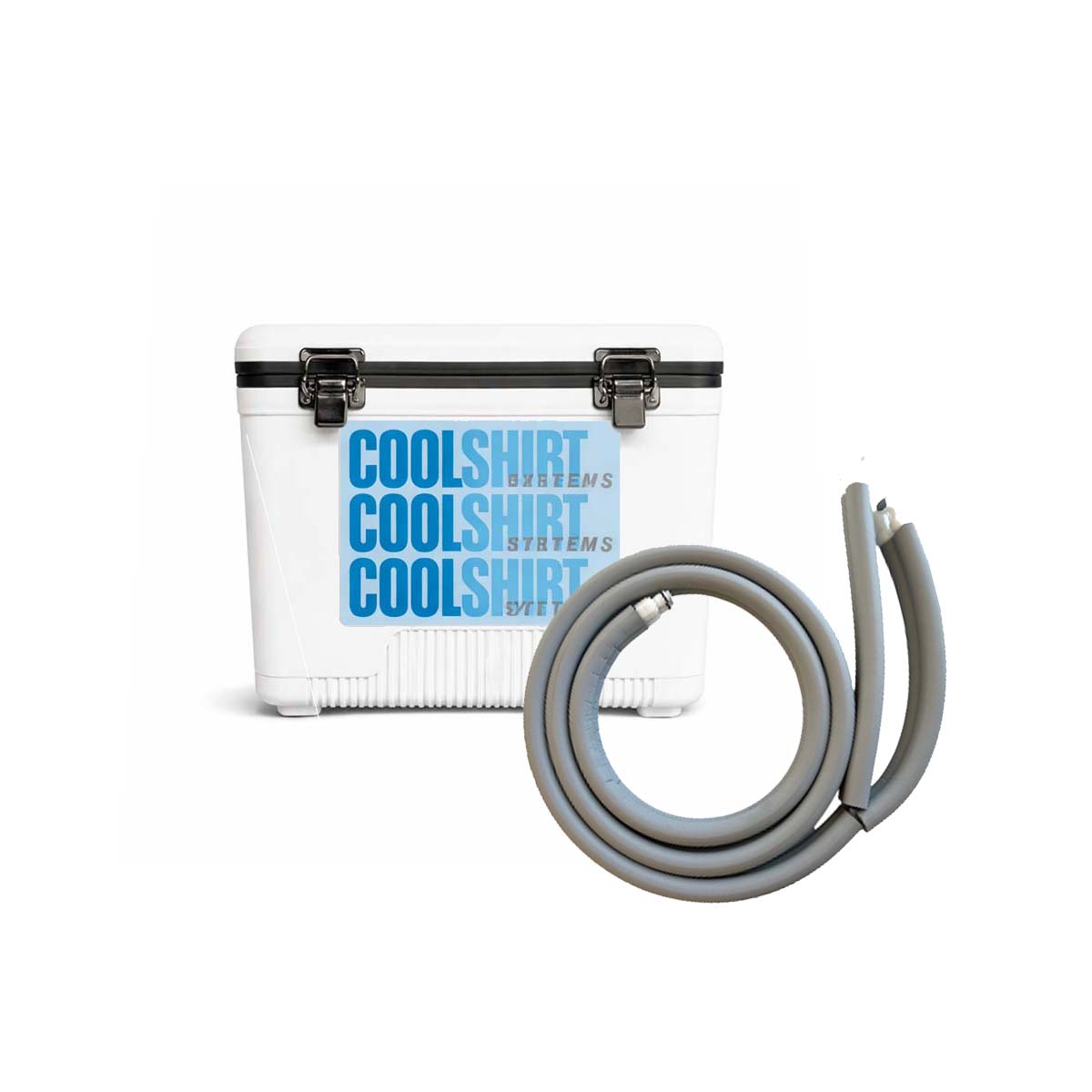

Coolshirt Rally Driver Cooling System - 7.5qt
The Coolshirt Rally System – 7.5qt is built for stage and rally applications where both driver and co-driver need cooling from a single compact unit. It includes a 7.5qt cooling unit with an internal pump and an 8-foot Y-hose with automatic shutoff quick-disconnects, splitting chilled water flow to two cooling garments. The system runs on 12V — exceeding that voltage voids the warranty. Cooling garments, temperature control switch, and mounting tray are sold separately.
| Part Number: | CS-SYS-RLY-07 |
| Manufacturer: | 3002-0007CS |
- 7.5qt cooling unit with internal pump for compact, space-conscious installations
- 8-foot Y-hose with automatic shutoff quick-disconnects — splits flow to two cooling garments
- Purpose-built for stage rally and other driver/co-driver cooling applications
- Quick-disconnects allow fast unplugging between stages or during occupant swaps
- Runs on 12V — exceeding this voltage voids the warranty
- Cooling garments, temperature control switch, and mounting tray sold separately
- Compact footprint suited to tight rally cockpits
The Coolshirt® Rally System – 7.5qt is built for stage rally and other two-occupant racing applications where both the driver and co-driver need cooling from a single, compact unit. Its defining feature compared to Coolshirt's standard Racer System is the 8-foot Y-hose, which splits chilled water flow so it can feed two cooling garments simultaneously — a practical setup for rally crews running long stages where both occupants are working hard in a tight, hot cockpit.
At the core of the system is a 7.5qt cooling unit housing an internal pump, which circulates chilled water out through the Y-hose. The hose terminates in automatic shutoff quick-disconnects, letting either occupant unplug from the system quickly between stages or during driver/co-driver swaps without spilling water or leaving the line open. The system operates on 12V — running it on higher voltage will void the manufacturer's warranty, so it's important to wire it correctly to your car's electrical system.
It's worth noting what's included versus what's not: the Rally System ships with the cooling unit and the 8-foot Y-hose only. Cooling garments (one for each occupant), a temperature control switch, and a mounting tray with straps are all sold separately, letting you outfit both driver and co-driver with garments sized to fit and build out the rest of the system to match your car's layout. The 7.5qt size keeps the footprint compact for cars where console and cockpit space is already tight.
